Description

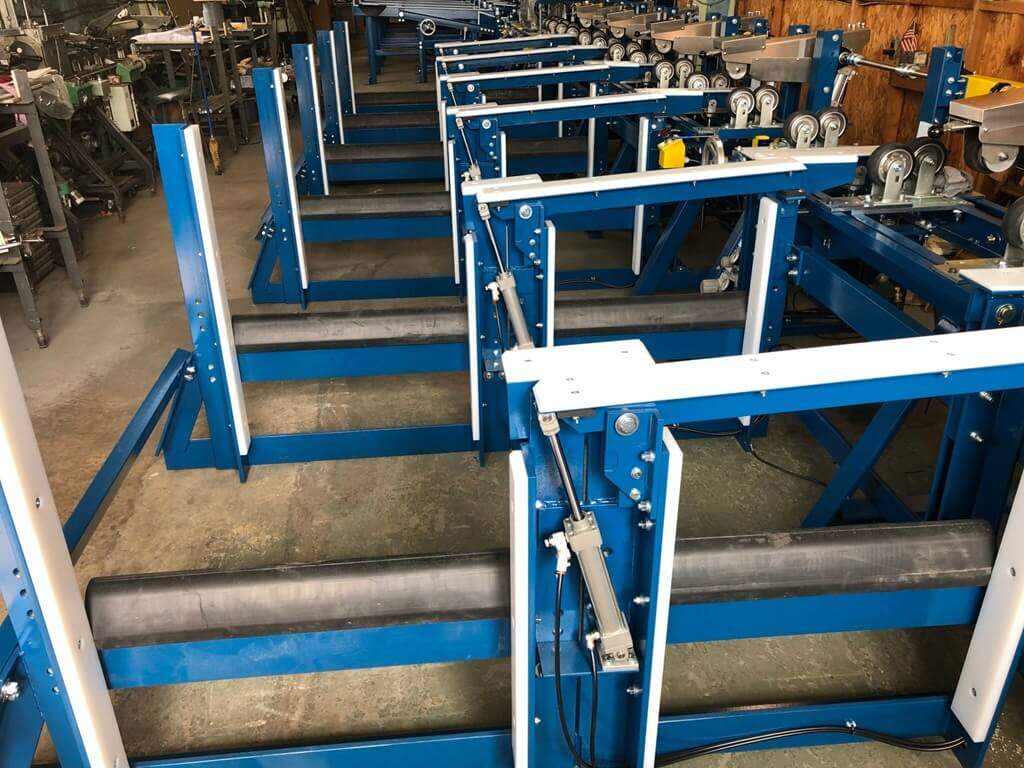

This series of racks have one “accept” bin and either one “reject” bin (191 Series) or two “reject” bins (192 Series). They are available for piece weights up to 11 lbs/ft (191/192); 55 lbs/ft (191H/192H) and 100 lbs/ft (191K/192K) corresponding to 16, 80 and 150 kg/m. See Bulletin 1000.
There are two ways to divert unloaded material into accept or reject bins: by manual push-button operation or automatically through the use of a Model 1088 Marker/Sorter Controller. See Bulletin 1000.
Also available is the 191B Belt-Fed Sorter for flat sided materials. When a piece is rejected, “gates” rise and the piece is routed to the reject bin. Good pieces are conveyed over the gates on motorized belts which carry the piece to the accept bin
TacTic® Material Handling Sorting Racks Model 190
These sorters are available for manual or automatic operation. After material is inspected, it is unloaded and ready for sorting.
Technology
High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws. This type of testing utilizes high-frequency sound waves that are transmitted throughout the material being tested in order to conduct a thorough inspection.
