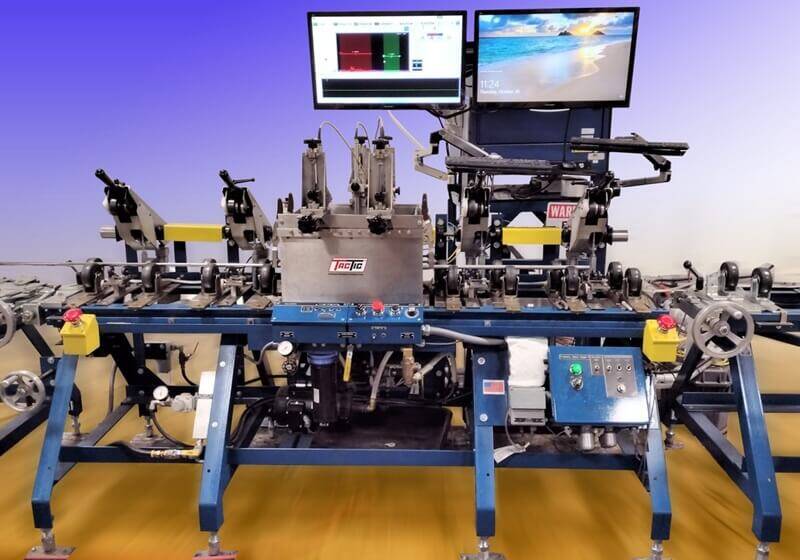

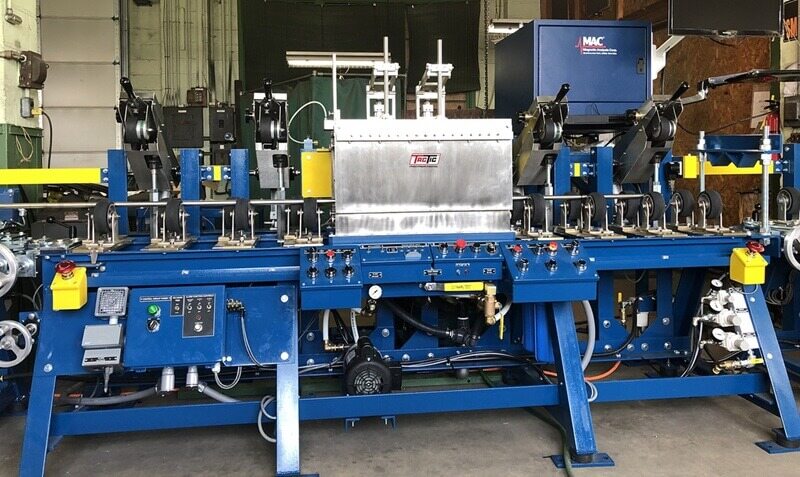

MAC has cost effective TacTic® “Spin-the-Tube” immersion tank ultrasonic systems which can be used to test tube up to 8” and bar up to 6” diameter, where high through-put speed is not a requirement. The systems locate internal and external defects and inconsistencies in the wall thickness of tubular products.

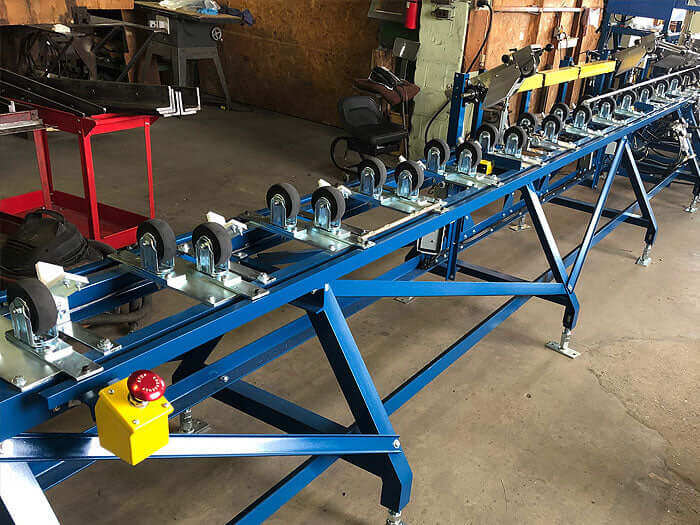

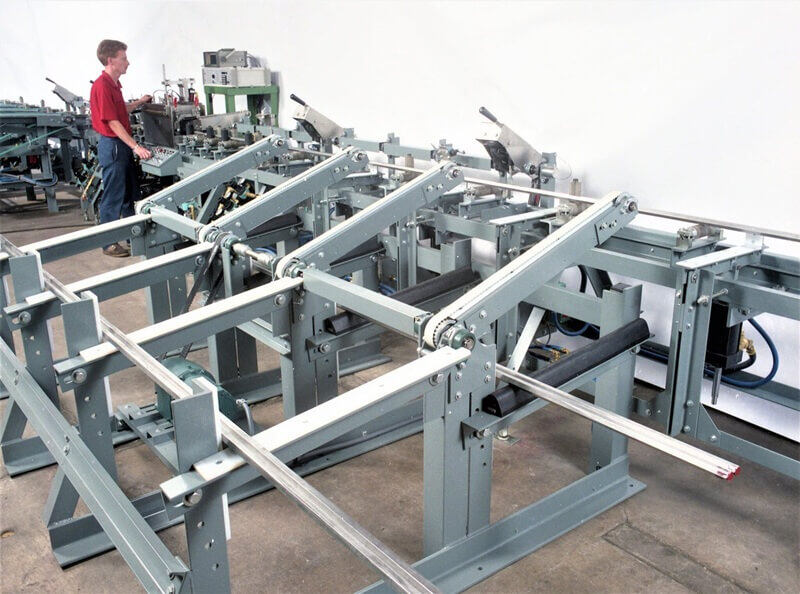

TacTic’s ultrasonic testers and idlers are specifically designed for the material you need to inspect, including round or flat material of varying sizes as well as tube or pipe welds. The tester and idler sections feed, rotate, and inspect the material.

TacTic’s UT equipment models with immersion tanks work equally well for ultrasonic tube, pipe, and bar inspection in automated production use or in manual, laboratory-type applications. We also offer a wide variety of systems for flat material and tankless testing.

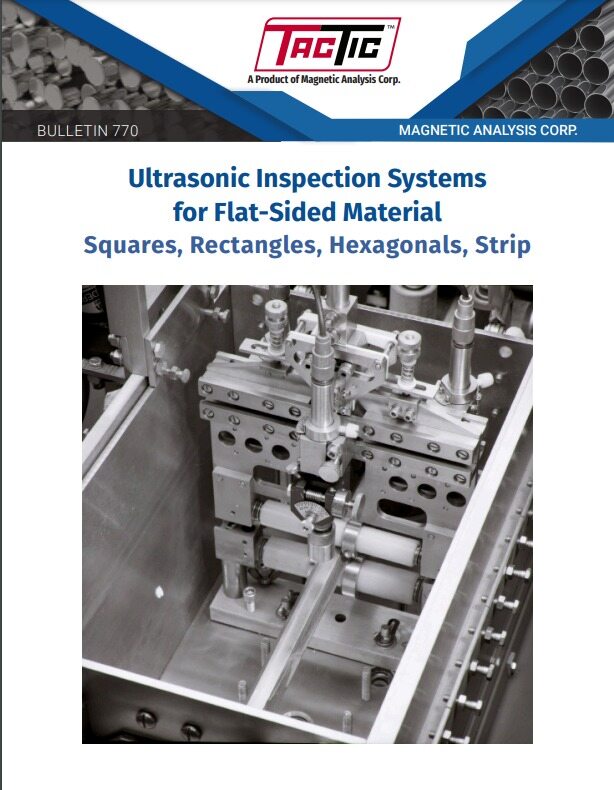

Model 77E can test squares, rectangles, hexagons and strip. The system features horizontal support rollers, vertical positioning rollers and fixed or “following” transducer positioners. The Model 77E is suitable for fast, accurate flaw detection in flat materials.
